IP Mediator
Mediation of IP traffic – following ETSI standards

IP Mediator

There may be situations in which Operators are unable to meet all lawful enforcement agency (LEA) requirements for particular Lawful Interception (LI) functionalities.

IP Mediator Chart

Existing functionalities must then be supplemented temporarily by additional adaptable and portable LI solutions.

Key Benefits

Key Benefits

Icon

ETSI Compliant

Following ETSI 102 232 - 3

Icon

Compact Solution

No requirement of full management system

Icon

Portable Solution

in a 19” form factor

Details

Details

UTIMACO IP Mediator allows the interception of IP traffic

Mediation of IP traffic – following ETSI standards

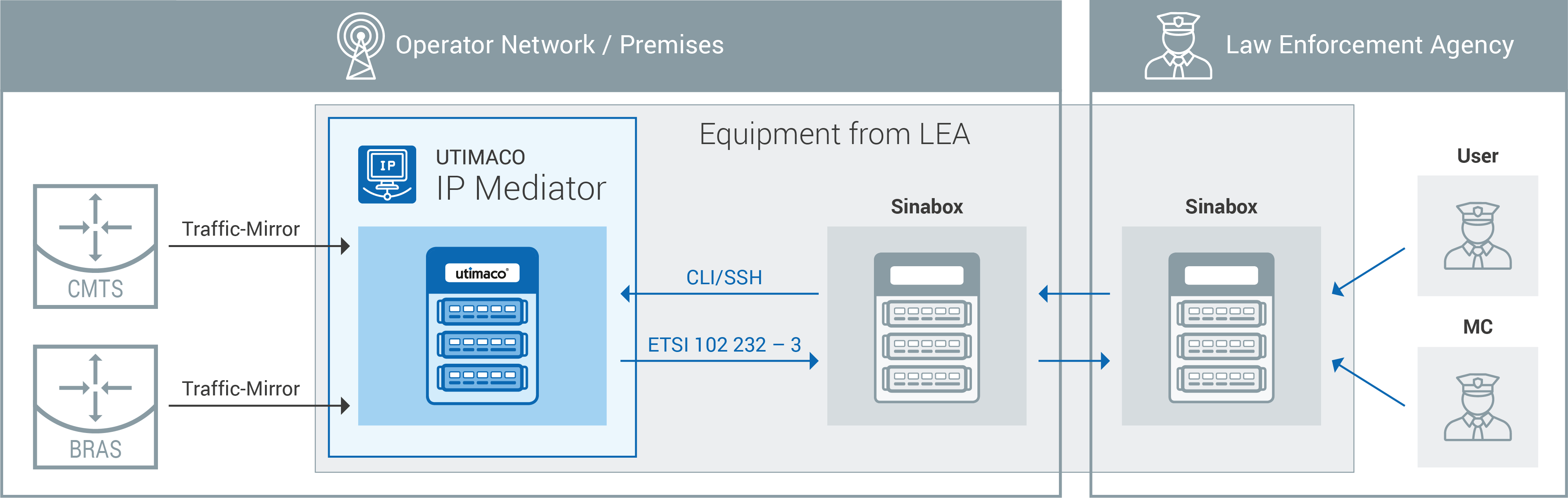

With UTIMACO's IP Mediator solution, IP traffic (xDSL, Cable) can be intercepted. The Operator mirrors IP traffic for interception and only needs to provide it in one dedicated link each. Then, UTIMACO's IP Mediator converts and mediates mirrored traffic and delivers a stream via common HI3 to LEA, based on ETSI 102 232 – 3 standard: the IP Mediator provides CC Buffering and content related HI1 notifications combined with real-time data delivery.

IP Mediator Chart

A streamlined solution for flexible operation

To use the entire functionality of the IP Mediator solution, a full LI management system is not required. SSH protocol  is used to gain access to the IP mediator and configuration is straightforward with command line tools. The solution’s compact design in a 19” form factor assures portability and enables forflexible, diverse application in various areas of operation.

  • Supports HI1 notifications
  • Access via SSH and Command Line Tool for configuration and statistics
  • Portable solution in a 19” form factor
  • CC buffer mechanism
  • Solution based on mirrored IP traffic only – non-intrusive and vendor independent
